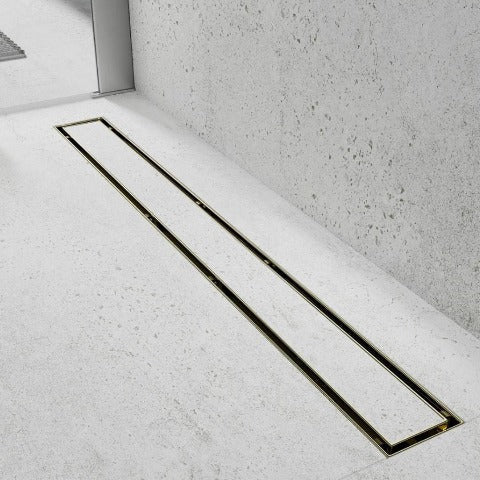

A linear drain (shower gully) is an ideal solution in a modern bathroom with tiles. It is intended for draining water from shower cubicles and open shower spaces. The aesthetic appearance and simplicity are undoubted advantages of linear outflows.

Dimensions:

• Depth of 58mm
• Material: Stainless steel
• Length: from 500 to 900mm
• Steel - AISI 304
• Water throughput: 60l / minute
• Siphon type: 360° rotating


Product Specifications:

• Gutter and grate steel thickness of 1.2mm
• Linear drainage (full package)
• Feet and sealing collar included
• Grid for tiles - width 50 mm
• The outflow is equipped with a collar around 2 cm, which facilitates laying the tiles
• Low steel siphon with the possibility of cleaning from the top
• Mounting depth only 52 mm

The set includes:

• A drainage channel with a mounting flange
• Cover plate (optional for pasting tiles)
• Siphon with 40/50 mm outlet with dirt trap with gasket
• Feet for levelling with the possibility of disassembly
• Sealing collar
• Installation instructions
